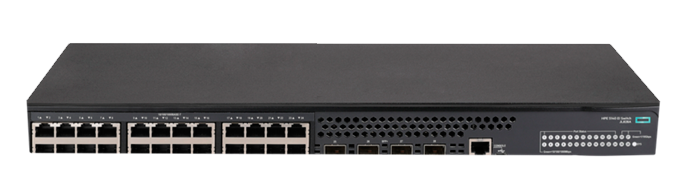

HPE Networking Comware Switch 24G 4SFP+ EI 5140

Power consumption24W (Maximum), 19W (Idle)
Note:
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Heat dissipationMaximum: 64/88 BTU/hr. (67.52/92.84 kJ/hr.)

Input voltageAC Voltage: 100 VAC–240 VAC

Ports24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);

Duplex: Ports 1–24 support 10BASE-T/ 100BASE-TX, 1000BASE-T (full only) SFP+ fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

Latency1000 Mb latency: < 5 µs
10 Gbps latency: < 3 µs

Routing capabilitiesTable Size: 1024 entries;
MAC address: 16,384 entries IPv6 Ready Certified

Switching capacity128 Gbps

Stacking capabilitiesIRF 9 switches

Throughput95 Mpps

Memory and processor512 MB SDRAM, 256 MB flash

Power supplyAt least 1 power supply is required (not included, must be ordered separately)

PoE capability370W PoE+ Maximum, depending on model

Operating temperature23°F to 113°F (–5°C to 45°C)

Management featuresHPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager

WarrantyLimited lifetime warranty. See the warranty duration guide.

Weight2.5 kg (5.51 lbs)

Dimensions4.36 x 44 x 16 cm (1.72 x 17.32 x 6.3 in)
